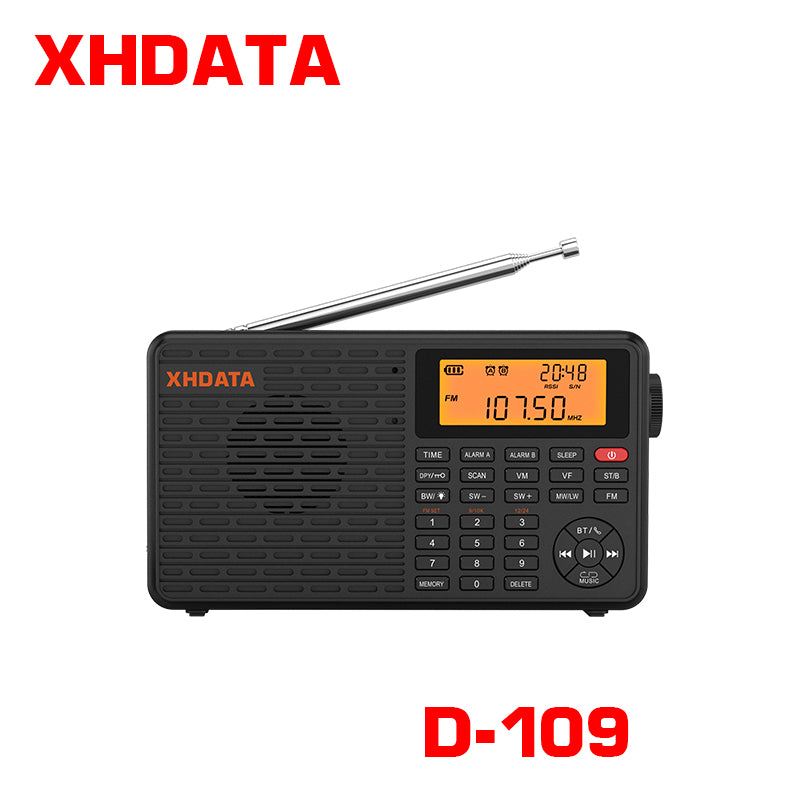

XHDATA D-109 is a new portable radio launched by XHDATA in 2023. It can receive FM ST/LW/MW/SW, not only a global band radio, but also a wireless stereo bluetooth player.
- Dual alarm clock + 12/24 time mode+AM/PM time
- Radio station timing startup
- 600 stations storage locations
- FM stereo
- AM 9K/10K frequency step switching
- AM bandwidth switching/LCD backlight permanently on and intelligent control switch
- Temperature Mode: °C / °F
- Bluetooth function / Wireless phone call

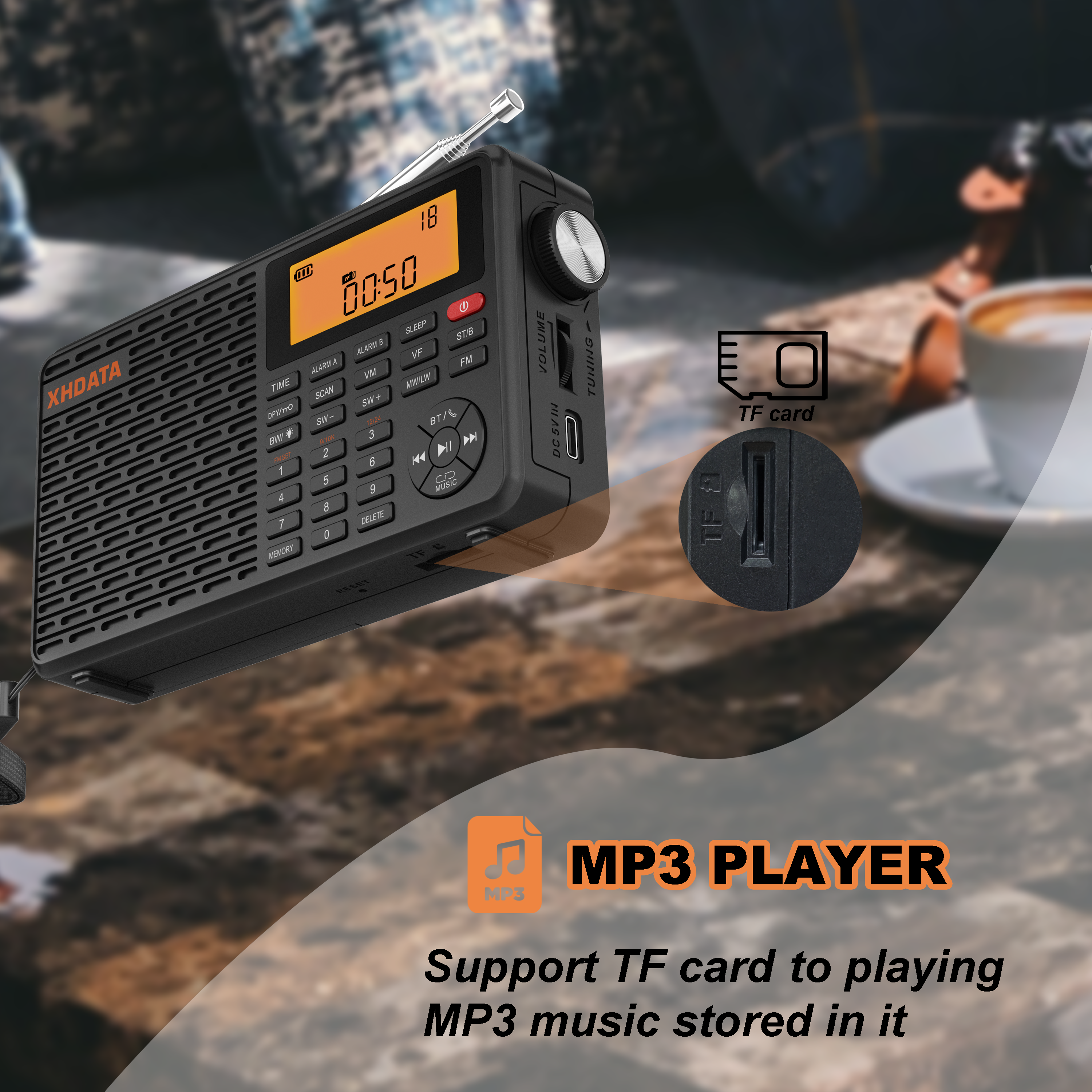

- Support TF card MP3 player
- Single Repetition
- Direct input
- Auto scan
- Manual tuning

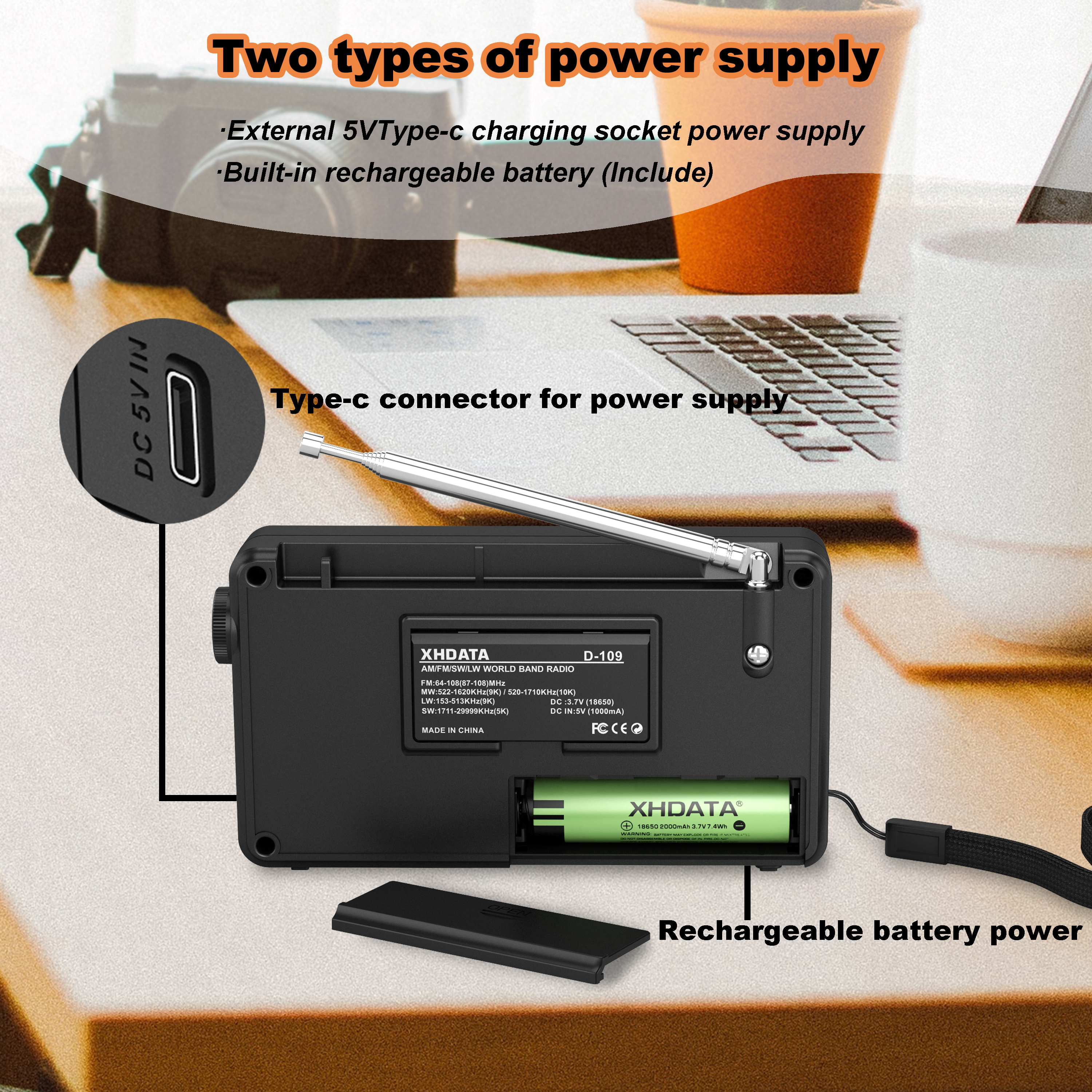

Power / Charging
- Battery power: 18650 battery
- DC: 3.7V (18650) 2000mAh
- DC5V IN: DC5V / 1000mA

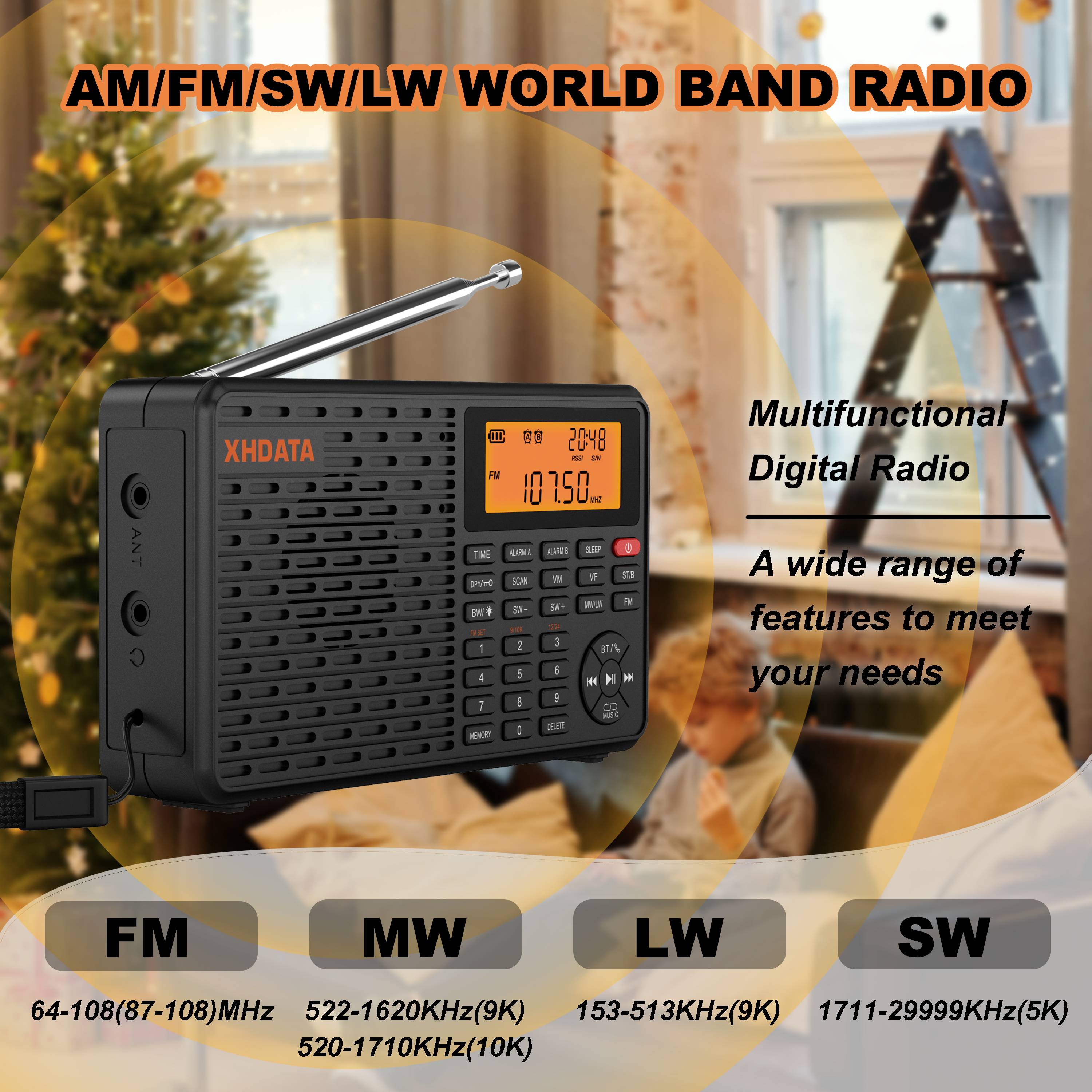

- FM: 64-108MHZ/76-108MHZ87-108MHz/87.5-108MHz
- LW: 153-513KHz(9K)
- MW: 522-1620KHz(9K)/520-1710KHz(10k)
- SW: 1711-29999KHz(5K)
Noise limiting sensitivity
- FM: (S/N=30dB): > 2 μV
- LW: (S/N=26dB): >10mV/m
- MW:(S/N=26dB): >1mV/m
- SW:(S/N=26dB): > 18μV
- FM: 60dB
- LW: 60dB
Memory radio frequency
- FM: 100 pcs
- LW:100 pcs
- MW: 100 pcs
- SW: 300 pcs
- Maximum output power: 2.0W
- Headphone impedance: 16-32Ω
- Speaker specification:40mm (dual NdFeB 16 core) 4Ω /5W
- TF card : support : 32G
- Audio playback format: MP3 / WMA / WAV /FLAC
- Bluetooth transmission distance: 10M

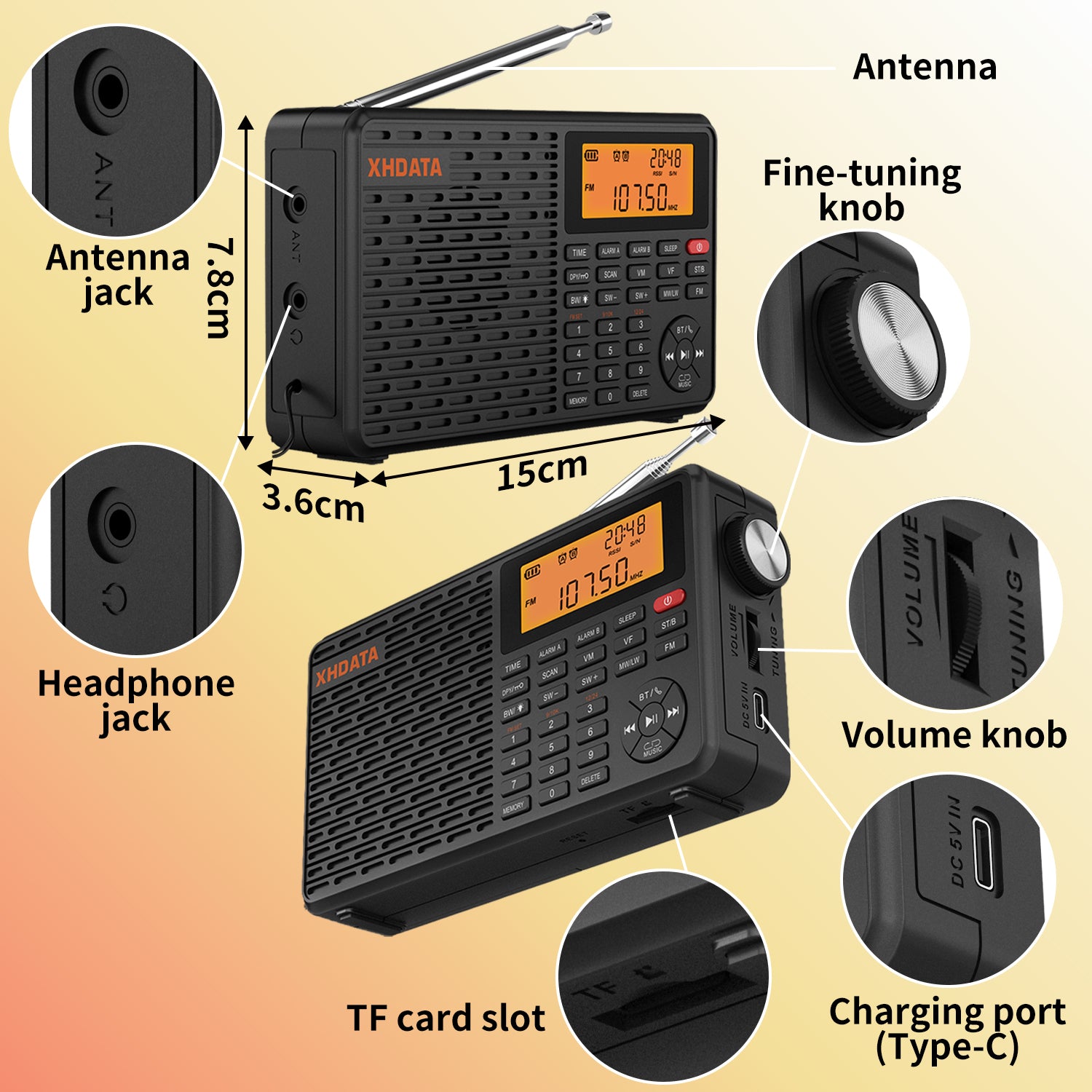

- With antenna jack ---Supports plugging in an external antenna to improve FM SW!
- With 3.5mm headphone jack---Enjoy radio anytime and anywhere
- 166 x 92 x 47 mm (W x H x D)
- Including battery 289g（ Excluding battery 237g ）
- （Small size, easy to carry, very suitable for home, travel, camping! Let you enjoy the wonderful listening time at any time）
- 1 x XHDATA D-109 Radio (with rechargeable 18650 battery)
- 1 x Type-C charging cable
- 1 x English manual（If you need other languages, you can downloa the electronic version on xhdata official website）
